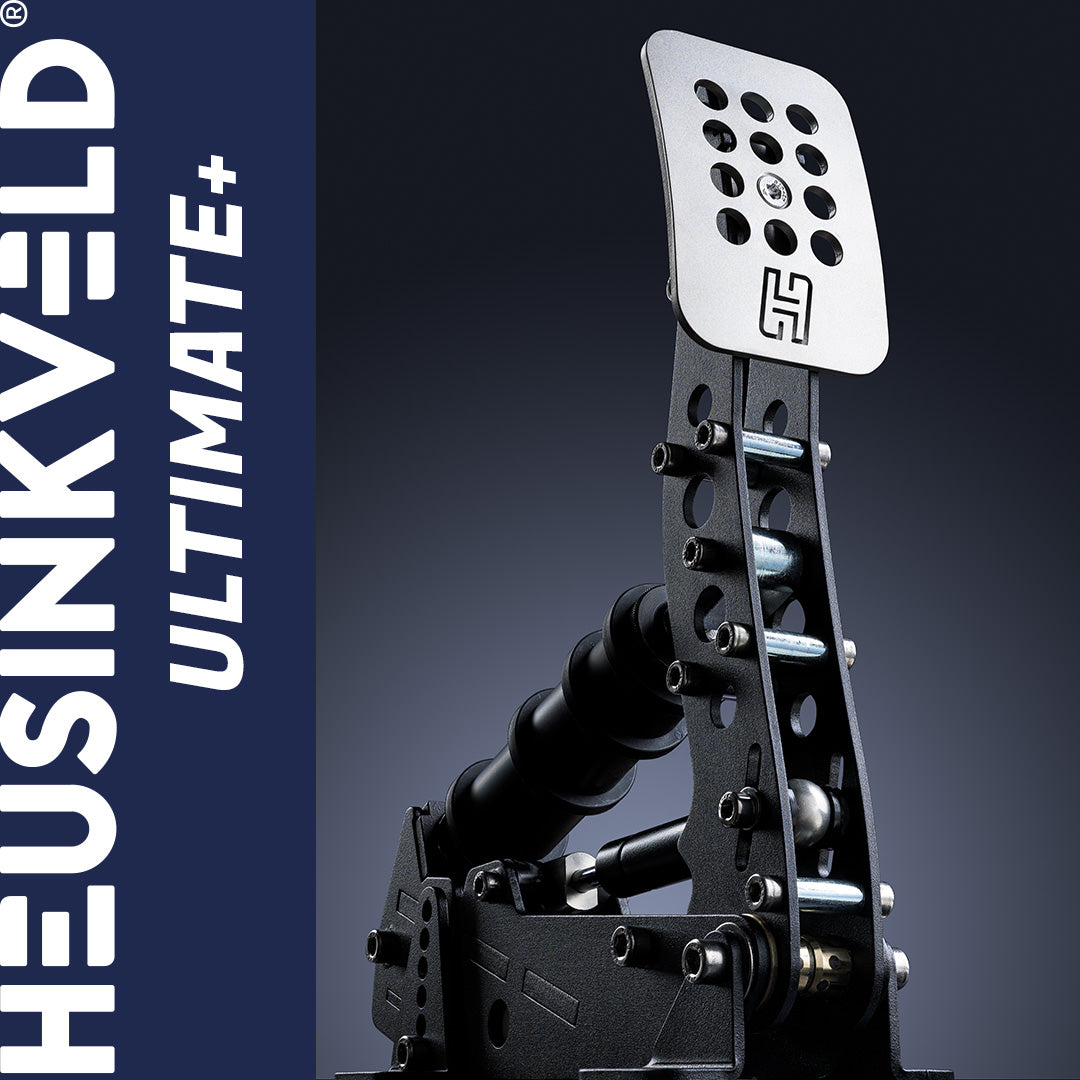

Heusinkveld Sim Pedals Ultimate+ 2-Pedal Set – Professional Hydraulic/Load-Cell Brake & Adjustable Throttle for Elite Sim Racing Overview
Product Description
The Heusinkveld Ultimate 2-Pedal Set is a professional-grade sim racing pedal system engineered for maximum realism, precision, and adjustability. Designed to replicate the pedal dynamics of real motorsport machinery, these pedals are ideal for GT racing, Formula-style cars, touring cars, endurance racing, rally, drifting and high-level esports competition.
Built from high-strength stainless steel with advanced load-cell technology and hydraulic damping, the Ultimate pedals offer realistic pedal weight, ultra-precise force measurement, and a highly adjustable platform that allows drivers to tailor pedal feel for any racing discipline. Whether you're fine-tuning brake pressure for GT endurance racing or optimizing throttle response for high-downforce circuits, the Ultimate 2-Pedal Set provides unmatched control and input fidelity.
Key Features
High-Force Load-Cell Brake Pedal
-
Utilizes a 200 kg-rated load cell capable of delivering up to approximately 140 kg of actual brake force.
-
Designed to replicate real motorsport brake systems such as GT3, LMP and Formula cars.
-
Dual-stage brake mechanism combines an adjustable coil spring with a progressive elastomer stack for highly realistic braking behavior.
-
Offers nine brake stiffness levels for tuning from soft to ultra-firm racing pedal feel.
-
Two-way hydraulic damping provides smooth compression and controlled pedal return for natural brake modulation.
Precision Load-Cell Throttle Pedal
-
Features a position-sensitive load cell for linear, accurate throttle input.
-
One-way hydraulic damping ensures smooth pedal actuation and refined throttle control.
-
Adjustable pedal travel, angle and height for optimal ergonomics across various rig configurations.
Fully Adjustable Pedal Geometry
-
Adjustable pedal angle, pedal plate height, pedal travel, spring preload and hydraulic damping settings.
-
Additional pedal movement and tension adjustments allow drivers to fine-tune feel for different car classes and racing styles.
-
Ideal for use in aluminium-profile rigs, full-frame cockpits and high-stability simulator platforms.
High-Strength Materials & Durability
-
Constructed from CNC laser-cut stainless steel with bead-blasted or powder-coated finish.
-
Equipped with industrial-grade slide bearings at all pivot points for minimal play and consistent movement.
-
Engineered with optimized tolerances and longevity in mind, tested for extensive durability under heavy load cycles.
Advanced Electronics with SmartControl Support
-
High-resolution USB controller ensures accurate, low-latency pedal input detection.
-
Compatible with SmartControl software for custom output curves, deadzones, brake force sensitivity tuning and multi-profile creation.
-
Enables switching between vehicle-specific or discipline-specific pedal setups with ease.
Plug-and-Play PC Compatibility
-
Pre-calibrated and ready to use with PC simulators.
-
Recognized as a high-resolution USB device for direct integration with sim racing software.
-
Designed for sim racers who want minimal setup time and maximum performance.
Technical Specifications
Heusinkveld Ultimate 2-Pedal Set
| Specification | Detail |
|---|---|
| Pedals Included | Throttle, Brake |
| Brake Sensor | 200 kg-rated force-sensitive load cell |
| Maximum Brake Force | Approx. 140 kg at pedal plate |
| Brake Mechanism | Dual-stage (coil spring + elastomer stack) |
| Brake Resistance Settings | Nine selectable stiffness levels |
| Brake Damping | Two-way hydraulic damping |
| Throttle Sensor | Position-sensitive load cell |
| Throttle Damping | One-way hydraulic damping |
| Pedal Adjustments | Pedal angle, height, travel, spring preload, damping tuning |
| Construction Material | CNC laser-cut stainless steel |
| Finish | Powder-coated or bead-blasted surface |
| Pivot Bearings | Industrial-grade slide bearings |
| Electronics | High-resolution 12-bit USB controller |
| Software Support | SmartControl and SmartControl Live |
| Mounting Requirements | Solid full-frame rig or compatible baseplate |
| Platform Compatibility | PC (Windows) |
| Ideal Use Cases | GT racing, Formula/F1, endurance, touring cars, rally, drifting, esports, pro simulators |
Why This Pedal Set Is a Top Choice for Serious Sim Racers
The Heusinkveld Ultimate 2-Pedal Set is designed for drivers who want the closest possible feel to real motorsport pedal systems. With extremely high brake force capability, hydraulic damping, highly adjustable geometry and elite-grade construction, it delivers performance that few pedal sets in the sim racing market can match.
From heavy braking zones in GT and Formula racing to precise throttle modulation in rally or touring cars, these pedals give you the consistency, speed, and control needed for competitive racing. They are the perfect upgrade for sim racers building a premium cockpit or professional simulator environment.
