Heusinkveld Sim Pedals Ultimate+ (3-Pedal Set)

HE-SPU3SC

Regular price $1,899.00 CAD Sale price $1,869.00 CAD Save $30.00 CAD
/
Tax included. Estimated shipping cost: $6.00 CAD ! The shipping estimate only applies to this product Shipping calculated at checkout.
Only 0 items in stock!
ready to ship
ships from ottawa, canada

Shipping Policy

  • All Trak Racer orders are shipped by the fastest and safest method. Please allow between 5-10 business days for delivery. Shipping charges will vary depending on the size of your order and your shipping destination. Please advise your phone number at checkout so we can get in touch with you if there is any problem.
  • Please make sure someone will be available to receive your order, otherwise, your package may be diverted to your local post office or to your local shipping depot. We recommend all deliveries are sent to a business address to avoid any re-delivery charges.
  • Trak Racer will ship to confirmed addresses only.
  • If an item runs out of stock before your order is processed, a refund will be offered via the same means as your original payment.
  • Order Estimated Time of Arrival (ETA) - where an item is out of stock, we will endeavour to provide an approximate ETA. ETA's should be used as a guide only, as it is an estimate and this timeline can be impacted by unforeseen factors due to the nature of international supply chains. We will advise if there are significant changes to any previous stated ETA and work with you accordingly.
  • The buyer is responsible for any destination import tax/charges (if applicable).

Our Returns Policy

We want you to be completely happy with your Trak Racer product. If something is not quite right, then get in contact with us and we will sort it out for you. If you are not completely happy with your purchase you can return it to us provided the following conditions are met:

  • You must return your order within 14 days of the dispatch date.
  • The item/s must be unused and not previously installed.
  • All accessories must be returned.
  • If the item/s have been used a restocking fee may apply following a detailed inspection.
  • Internal/external damage has not been caused due to improper installation, misuse or incorrect service.

Making a Return

To return merchandise simply complete the Return Authorisation form available by first emailing support@trakracer.com along with a detailed explanation of the problem and photos/videos if you think this will help us understand the problem. The completed form will need to be enclosed with your securely packed order and posted back to the address on the Return Authorisation form provided. Please ensure adequate postage is affixed, as Cash on Delivery returns will not be accepted.

We also recommend you send your return back via a trackable method of postage, as Trak Racer will not be responsible for lost or missing parcels, and all goods are your responsibility until they reach our warehouse. IMPORTANT: Returns without a Return Authorisation form included will be returned to at the customer’s expense.

Return Credits

We will credit your original method of payment, excluding postage charges unless otherwise agreed to. The refund will be processed once your goods are received into our warehouse and checked. Goods must be 100% complete and in the same condition you received them in. Please note that it may take up to 4 working days for the refunds to show in your account.

Faulty Items

Trak Racer does its best to ensure that all customers receive top quality and faultless products. In the situation where you believe that a product is faulty, or different from the description provided on the website, please contact support@trakracer.com, and we will resolve the issue as quickly as possible. If you feel that your return falls outside of our policy, then please contact the Trak Racer Support via support@trakracer.com. If you feel that photos or videos of the problem will help Trak Racer in the first instance please ensure these are included in your first communication to support@trakracer.com. We want to make sure that you are happy with your Trak Racer purchase so in the event of an issue, we'll work with you to resolve.

International Returns:

International customers are responsible for all return shipping costs, duties, taxes, and brokerage fees.

Products must be returned in new and unused condition, with all original tags and packaging intact.

Products that have been worn, used, or altered will not be accepted for return or exchange.

Custom or special order items are not eligible for return or exchange.

This policy is subject to change without notice.

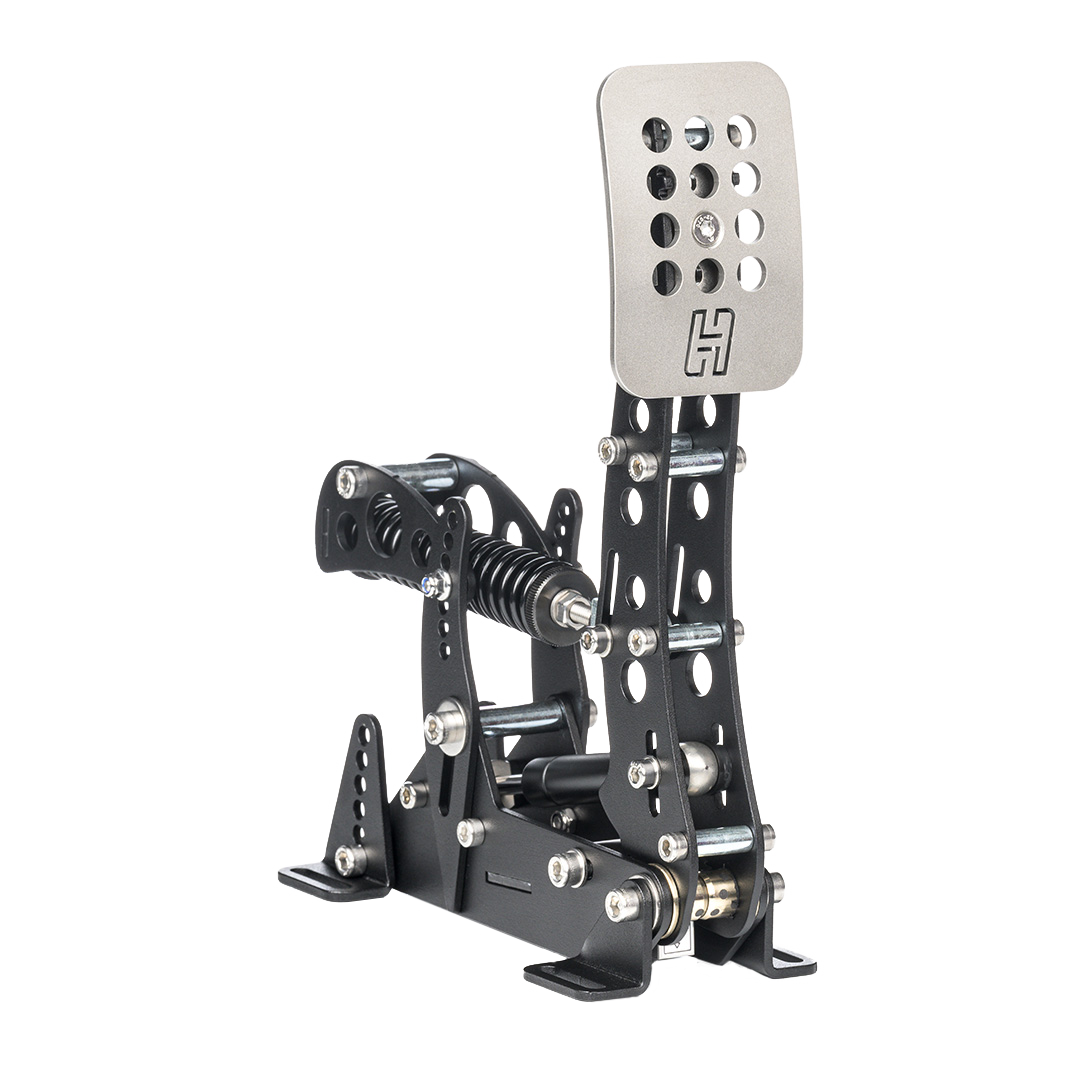

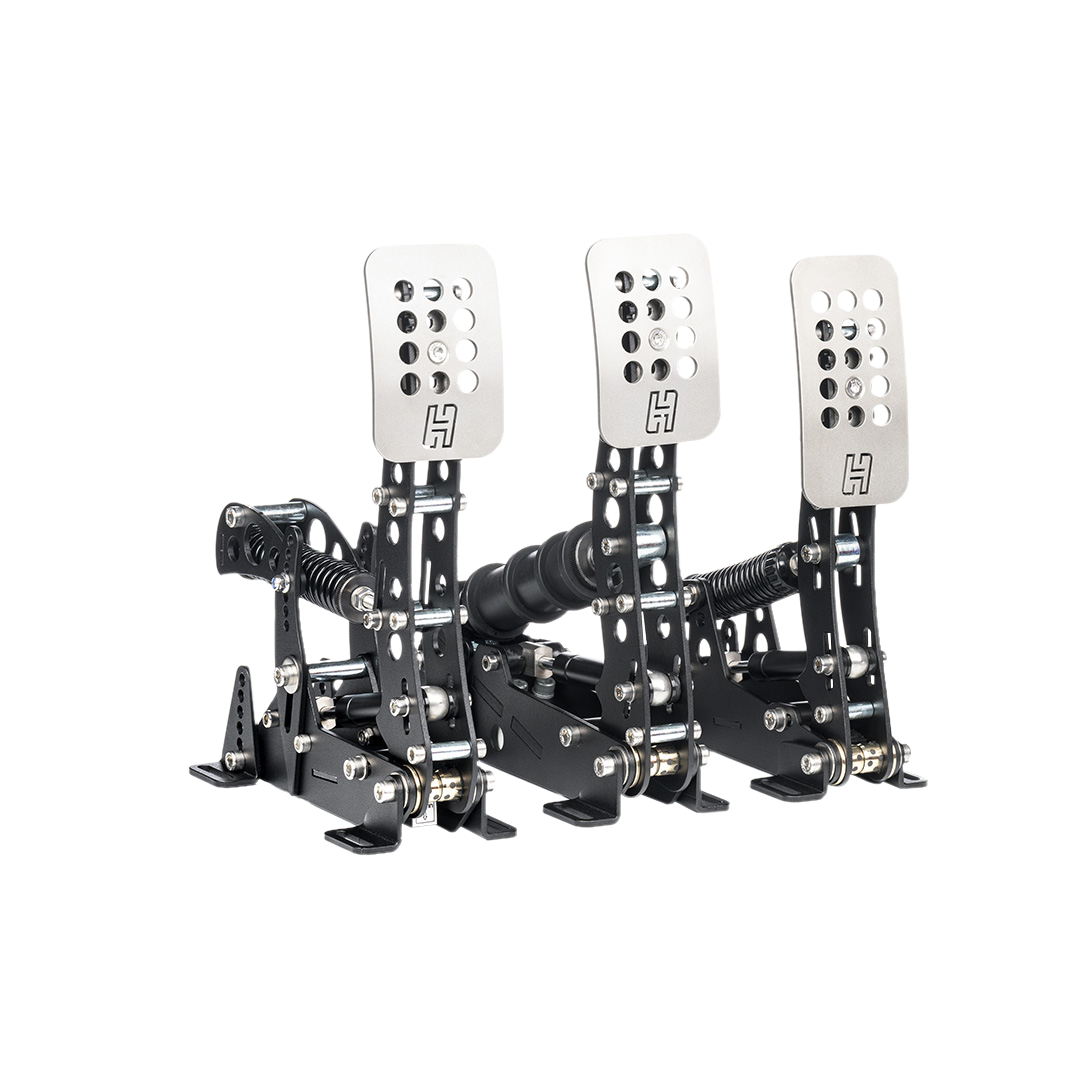

    Heusinkveld Sim Pedals Ultimate+ (3-Pedal Set) Overview

    Heusinkveld presents some of the highest quality, most adjustable and most realistic feeling pedals on the market: Heusinkveld Sim Pedals Ultimate+ powered by SmartControl software.

    The Sim Pedals Ultimate+ are designed for high-end professional motorsport simulators and can be used in the following driving simulator environments:
    For professional driver training.
    For home use (eg. eSports simulators, simracing enthusiasts).
    In commercial applications (eg. rental simulators).

    Capable of simulating pedal loads as high as in real GT and F1 cars, this high-end pedal set are trusted by world class GT, single seater and Esports drivers.

    Engineering

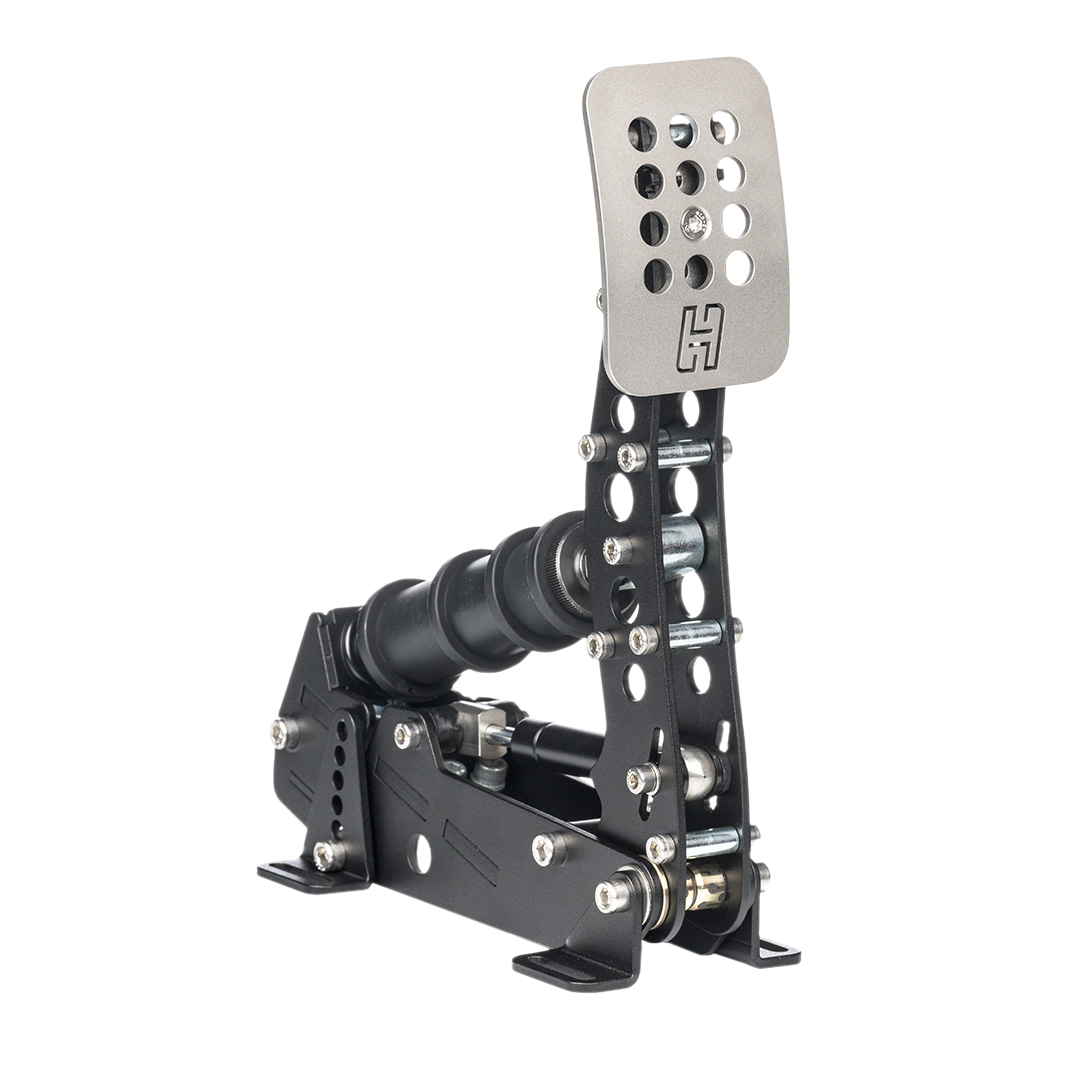

    The pedals have a strong, durable and adjustable design capable of handling up to 140kg of actual force at the brake pedal (200kg loadcell). Designed with CAD and FEA, all structural parts are CNC precision laser cut stainless steel with a glass bead blasted finish.

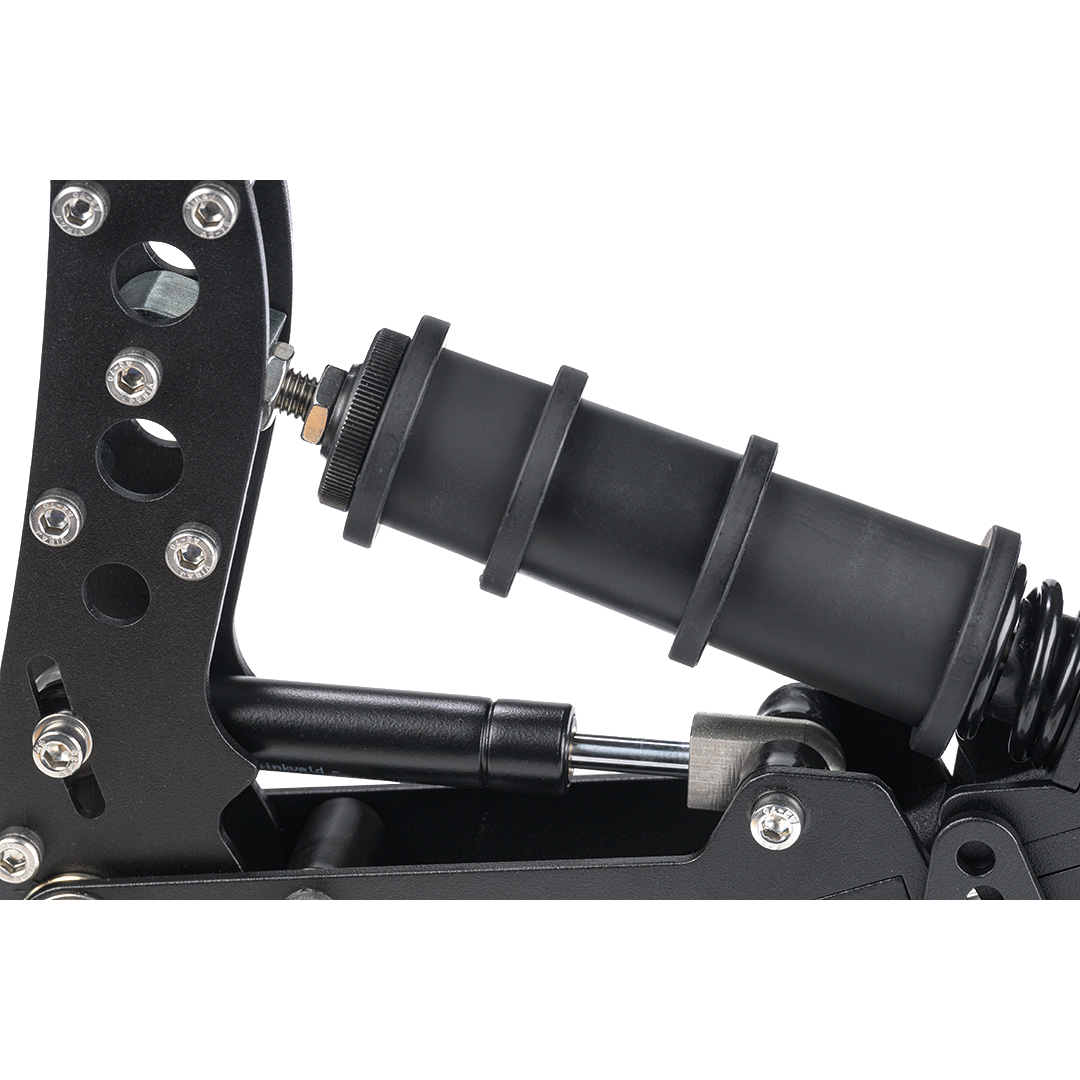

    The all new custom made brake elastomers are smooth, responsive and provide an unprecedented progressive brake resistance (concave force curve) just as you would have in a real race car. On the ingoing and outgoing stroke they have firm bump and rebound characteristics. They retain their as-new characteristics even after thousands of races.

    The bespoke hydraulic dampers of the Sim Pedals Ultimate are ultra-reliable and do not require periodic maintenance. The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose. The amount of damping can be adjusted.

    The Sim Pedals Ultimate+ load cell assemblies provide a true linear input measurement of throttle position and brake force. Their accuracy and durability are unmatched as they do not wear over time. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.

    The pedals have passed full EMC compliance testing, guaranteeing a stable output signal regardless of other electronic components used in your simulator.

    Powered by Heusinkveld SmartControl software
    The Sim Pedals Ultimate+ come with a powerful configuration tool SmartControl, allowing you to set up your pedals. A key feature of SmartControl is the ability to set custom signal output maps per pedal. Working together with all-new electronics, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force. There is support for saving an unlimited amount of profiles.

    More information
    For the Sim Pedals Ultimate+ we also offer an optional mounting plate: the Sim Pedals Ultimate+ Baseplate.

    Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Sim Pedals Ultimate+, even if you use the optional Sim Pedals Ultimate+ Baseplate.

    This product is compatible with the PC / Windows platform. It cannot be used on consoles such as Xbox or Playstation.

    With the Heusinkveld Sim Pedals Sprint being able to cope with high brake loads, a sturdy mount to your simulator rig is an absolute must. If you do not want mount the pedals directly to your rig but want to put them on a baseplate first, Heusinkveld offers an optional rigid mounting solution.
    Heusinkveld Sim Pedals Sprint Baseplate allows flexible positioning of individual pedals and also comes with an adjustable heel plate.

    Engineering
    This baseplate helps to create a solid platform to mount the Sim Pedals Sprint on your rig. The brake of the Sim Pedals Sprint is able to cope with up to 65kg of force, the standard mounting plates of rigs may show excessive flex under these loads. The baseplate assembly consists of multiple elements:
    - A pedal plate (for mounting your pedals)
    - A height-adjustable heel plate
    - Two brackets (to the secure the baseplate)

    You also receive mounting hardware for the pedals and for mounting the baseplate to a 6 mm thick underlying plate.
    The pedal plate mounting points for the pedals are slots, these slots allowing lateral adjustment of individual pedals. The dimensions of these lateral slots are 29mm for the brake and 24mm for the throttle and clutch. Every single pedal can also be adjusted 12,5mm backwards and forwards through the slots in the pedal feet themselves.
    The heel plate is height-adjustable, you can put it in the default position (0 mm elevation) or use spacers (20 mm and 40mm) to raise it. These spacers are included and are supplied to put the heel plate in an elevated position.

    Compatibility
    The Sim Pedals Sprint Baseplate is only compatible with Heusinkveld Sim Pedals Sprint 2 or 3 pedal sets.

    The mounting holes on the brackets are compatible with TM T3PA and T3PA Pro (235mm) pedal sets. There are six mounting points, these give plenty of options to mount the baseplate to aluminium profiles or create your own drilling template to install the baseplate directly to your rig.
    Note: this baseplate does not allow you to install the pedals on a floor without further support or in a wheel stand. A full frame rig/simulator is always required.
