Product images are renders for illustrative purposes. Final design may differ slightly in appearance, but all specifications remain accurate.
Product additional content begins here
description
the first SIMULATOR DESIGNED AND developed in collaboration with FORMULA engineers

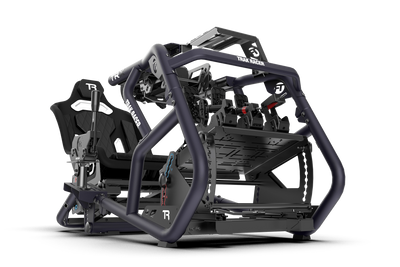

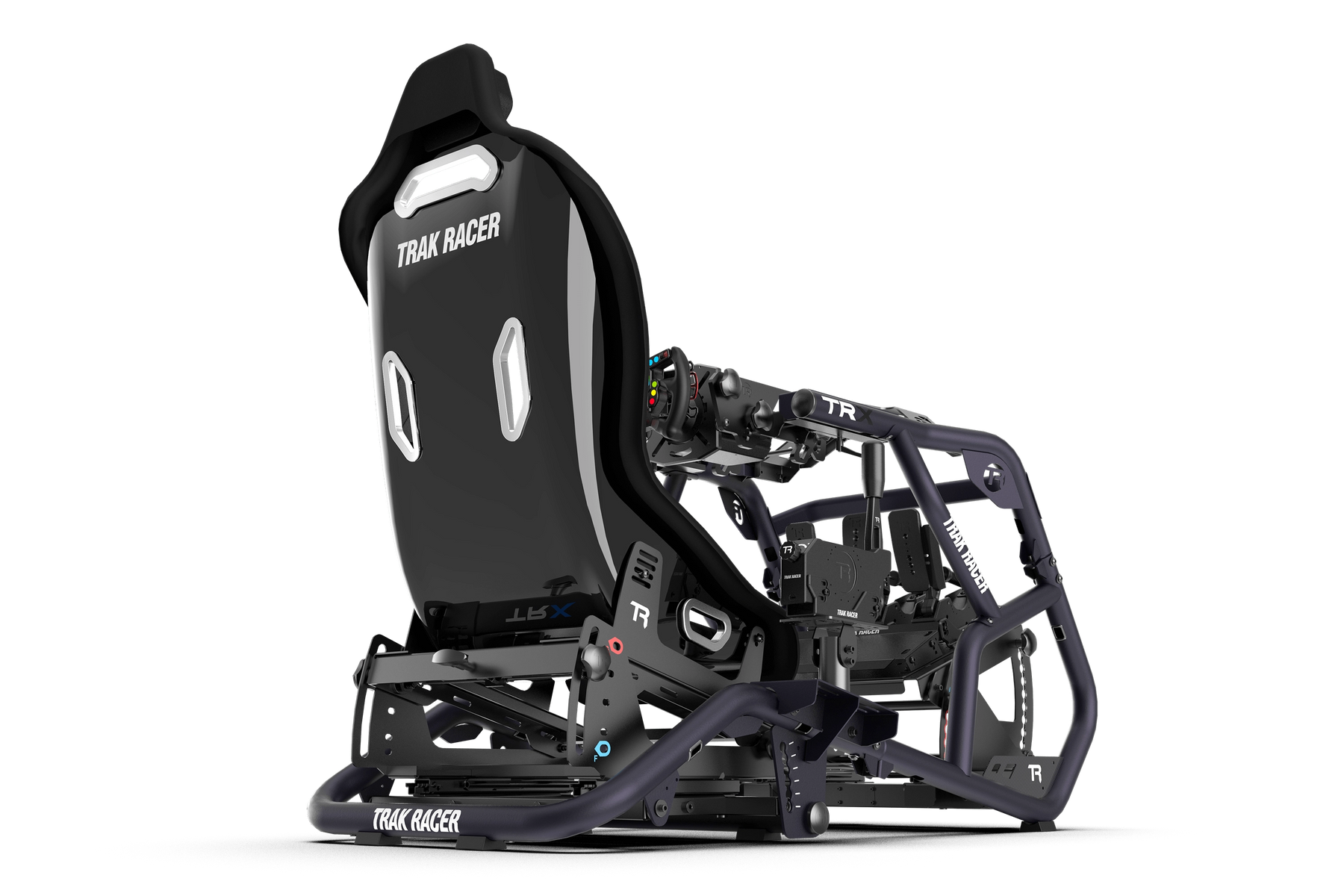

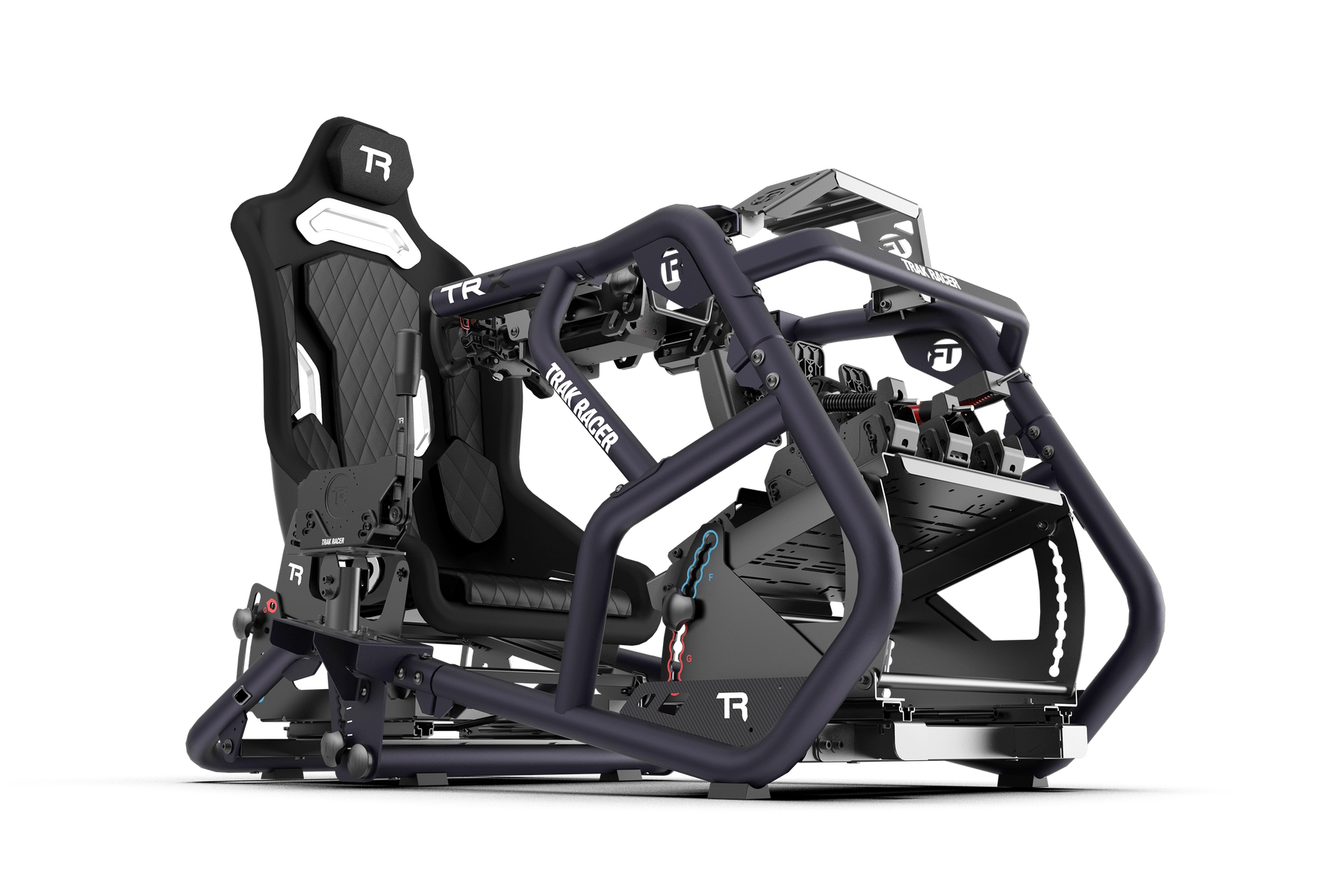

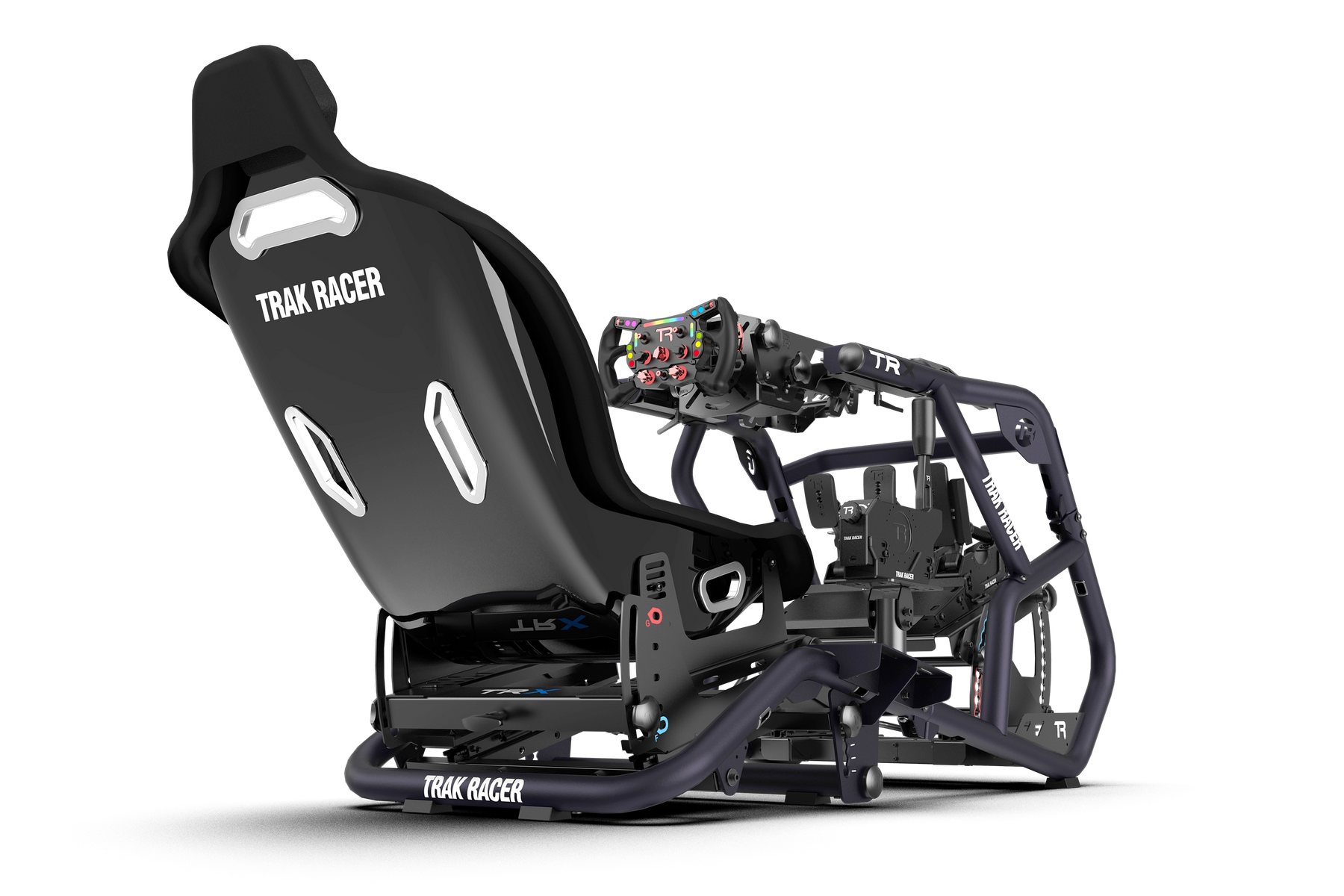

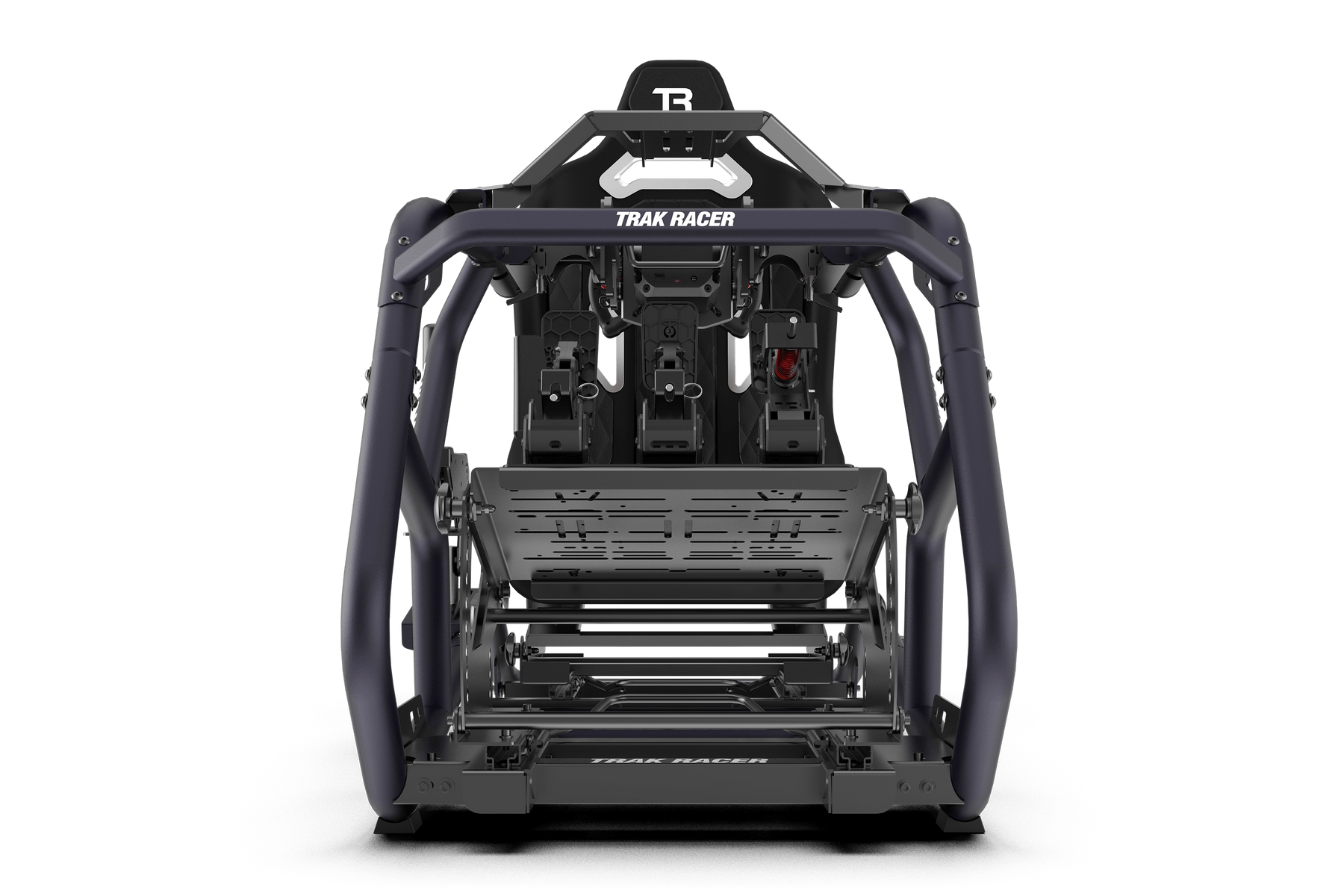

The Trak Racer TRX is a state-of-the-art racing simulator developed
collaboratively by Trak Racer and Formula Engineers. This cutting-edge simulator allows users to
seamlessly switch between Formula and GT seating positions in a matter of minutes, offering a versatile
experience for professional drivers and enthusiasts alike.
Boasting a sturdy construction engineered
to withstand the intensity of competitive racing, the TRX ensures stability and durability during high-speed
sessions. Its adjustable design allows for a personalized racing setup, with options to fine-tune the
seating position, pedal height, and wheel placement in minutes; tool-free!
DISTANCE – ANGLE – HEIGHT
TOOL-FREE ADJUSTMENT IN MINUTES
Pedal Plate
Wheel Mount
Seat Assembly
Designed to meet the demands of all professional motorsport drivers from GT to Formula, and everything in between.
By adjusting the height and angle of the pedal tray, wheel mount and seat, you’ll be able to find the most accurate position for each style of motorsport, whether you’re a professional driver or aspiring to be one!

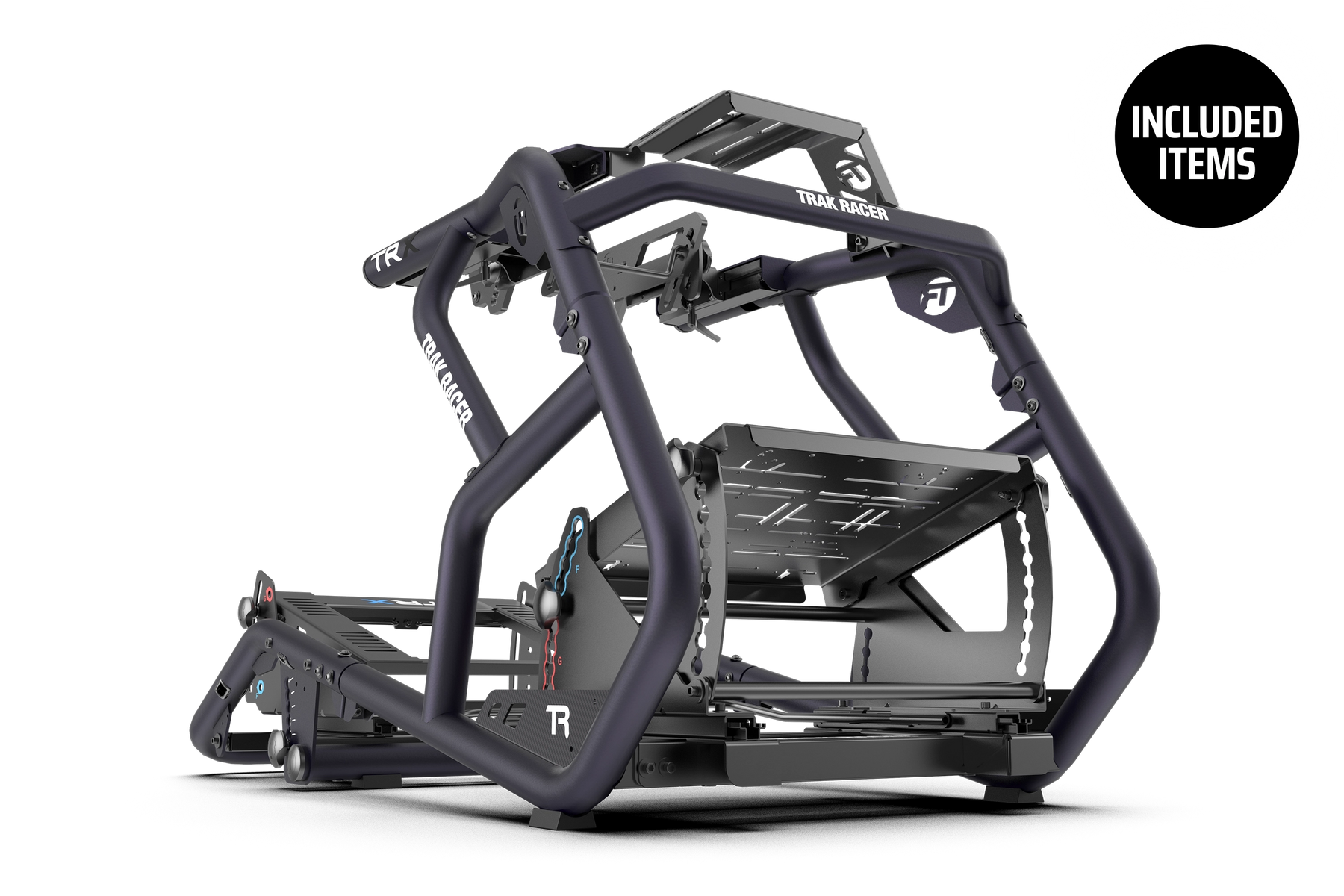

WHAT’S INCLUDED
Chassis
All tubular chassis pieces
Wheel Mount
Select from a variety of wheel mounts to suit your wheel base
SEAT ASSEMBLY
Adjustable height and angle
PEDAL MOUNT
Fast-adjusting pedal mount
5 YEAR WARRANTY
You're covered on faults for five years. Although, as we use the best materials and skilled craftsmanship, we are confident we won't hear from you!
Wheel Mount
Select from a variety of wheel mounts to suit your wheel base
Additional Inclusions
Floor-protecting rubber feet, assembly tool-kit and more
5 YEAR WARRANTY
You're covered on faults for five years. Although, as we use the best materials and skilled craftsmanship, we are confident we won't hear from you!
Chassis
All tubular chassis pieces
Wheel Mount
Select from a variety of wheel mounts to suit your wheel base
SEAT ASSEMBLY
Adjustable height and angle
PEDAL MOUNT
Fast-adjusting pedal mount
Additional Inclusions
Floor-protecting rubber feet, assembly tool-kit and more
5 YEAR WARRANTY
You're covered on faults for five years. Although, as we use the best materials and skilled craftsmanship, we are confident we won't hear from you!
BENEFITS
Co-designed by Formula Engineers, it’s as close as you can get to the real thing, at home or at a training facility. In Formula position you’re able to experience the same seating as in the "real car".
The Trak Racer TRX's two inch steel construction will ensure stable game play with direct drive wheels and more.
Strengthened Pedal Plate
The Trak Racer TRX has been improved to withstand up to 180kgs of braking for force without flex. Pre-drilled mounting points allow for a large range of new pedal sets on the market and the slide function remains - so you can position your pedals exactly where you need them!
Trak Racer seat not included.

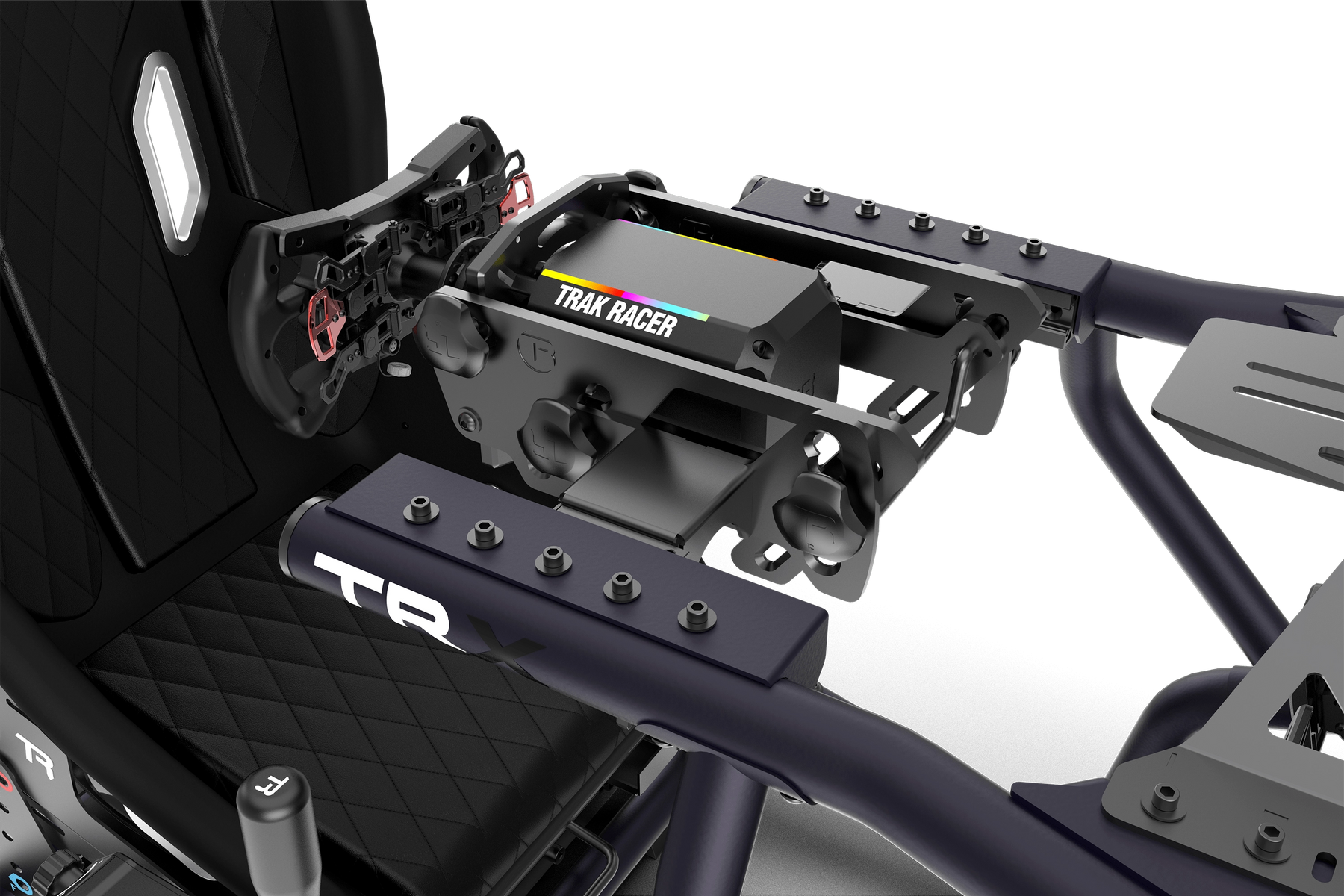

THE WHEEL ASSEMBLY
The Trak Racer TRX is available with 3 different wheel mounting options to suit a majority of steering wheel bases, including Direct Drive Systems from Trak Racer, Simucube, Fanatec, VRS and more; as well as belt-driven wheel bases from Logitech and Thrustmaster.
The tool-free wheel deck has slide, height and angle adjustment, and can move between Formula and GT Driving position faster than any other cockpit on the market.
THE PEDAL ASSEMBLY
The Flex-Free Pedal Plate Assembly has been engineered for quick adjustment forwards and backwards, by use of a sliding mechanism and includes height and angle adjustment. With the clever tool-free pedal system, it allows professional drivers and hobbyists quick adjustment between raised Formula pedals, low and angled for GT alongside inverted pedal mounting.
Trak Racer Pedals not included.
SEAT ADJUSTMENT
The intelligent Trak Racer TRX seat assembly; designed in conjunction with Formula Engineers, provides tool-free seat changes in under 10 seconds. Developed with feedback from ergonomic specialists to place the driver in the best possible position. For true immersion, the assembly includes space beneath the seat to mount a Trak Racer Haptic Bass Shaker.
Patent pending.
Trak Racer seat not included.
OPTIONAL EXTRAS
Here’s just a few of the optional extras you can choose from when completing your purchase.
TRX HYBRID FIXED FIBERGLASS SEAT
Co-Developed with Formula Engineers, the Trak Racer Formula/GT Hybrid Sim Racing Seat is a groundbreaking design, offering an unrivalled racing experience. Engineered for the extreme demands of Formula and GT racing positions, this seat ensures both authenticity and long-lasting comfort for extended sim racing sessions.
TRAK RACER HAPTIC BASS SHAKER KIT
A 200W tactile mono transducer amplifier and a 100W haptic bass shaker (second bass shaker sold separately), engineered to transform your sim racing and gaming experience with cutting-edge haptic in-game technology.
Meet the team
The Alpine Racing TRX is the result of R&D engineers from Alpine F1 Team and engineers from the world’s most innovative and respected simulator manufacturer, Trak Racer. Trak Racer believes in seizing an opportunity strongly and our Alpine Racing TRX cockpit is not only an announcement of a new product but a statement.
Matt Sten
Designer, Founder and CEO
“Our goal was to create a simulator that both professional drivers and aspiring professional drivers could train on. Looks like we are Spot On with the Alpine Racing TRX .”
Ian Goddard
Alpine F1 Team Head of Technical and Innovation Partnerships
“The Alpine Racing TRX, I think, takes gaming to the next level. People can realistically start to race at home, moving to esports and really start to prove their capabilities before they even step into a real race car .”
Elizabeth Apthorp
Alpine F1 Team Composite Design Engineer
“It really makes you feel like you are in there, driving. We tried to make the seating position as close to Formula One, as possible; while it still has the bucket shape to hold you in. Anyone can fit in .”
FEATURED VIDEOS
Specifications
Wheelbase Torque
Up to 30nm
WEIGHT
89kgs (196lbs)
SIZE
620mm wide
1507mm long
(24.4in x 59.33in)
Assembly Time
Approx 2 Hours
Mount Compatibility
WHEEL DECK COMPATIBILITY
- Asetek La Prima, Forte, Invicta & Initium wheel bases (with adapter SKU: TR-APDD)
- AccuForce V1/V2
- Conspit Ares 12nm & Ares Platinum 20nm
- Fanatec Elite, Clubsport, Clubsport DD, Clubsport DD+, Podium DD1/DD2, CSL DD , Fanatec GT DD Pro and CSL Elite
- Logitech G25, G27, G29, G920, G923, Logitech G PRO
- Moza R3, R5, R9, R12, R16, R21 DD Wheel Base including updates. (The updated R9, R12 and R16 can be front mounted with additional hardware).
- MOZA R21 Ultra & R25 Ultra (can also be front mounted with additional mounting brackets) Nacon REVOSIM RS Pure (2025)
- PXN VD4 / VD6 / VD10, V12, V12 Pro (2025)
- SIMAGIC Alpha EVO, EVO Sport & EVO Pro (Side mounting with Simagic side mounting kit)
- Simagic Alpha Mini DD, Alpha DD, Alpha Ultimate Direct Drive
- Turtle Beach Velocity One Race
- Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II, T598 & T818 with a Thrustmaster Adapter
- Trak Racer Direct Drive (all Variants) Wheelbase
- VNM DD Bases Elite 18 Nm, Supreme 25 nm, VNM DD Xtreme 32 Nm
Contact us if your product is not listed
Other Wheel Bases - requires optional bracket (Trak Racer Direct Drive Mount)
- AccuForce V1/V2 (turn the top cover around to fit)
- Bodnar 53 series
- Immsource ET3 and ET5
- Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
- Lenze MCS12 series
- MiGe 130ST(small and big)
- Ricmotech Mini-Mite Direct-Drive Steering System Base
- Simucube SC1 / SC2 Sport, Pro, Ultimate
- Simagic Alpha / Alpha Mini/ Ultimate
- VRS Force Pro, DFP20, DFP15 wheelbases
- VNM DD Bases Elite 18 Nm, Supreme 25 nm, VNM DD Xtreme 32 Nm
PEDAL DECK COMPATIBILITY
- Asetek La Prima, Forte, Invicta, Invicta T.H.O.R.P. II & Initium pedals
- AW Prime Pedals Set
- BJ Sim Racing Steel Series, 1000psi Hydraulic
- Cammus LC100 Pedals (2024)
- Conspit CPP & CPP.LITE Pedals
- Cube Controls Hydraulic SP01
- DC Sim Racing DC3
- Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (including Inverted Pedals)
- Ghost Sim Racing Phantom-PRO Pedals (2023–25)
- HPP PRX 3P, JBV 2/3 Pedal System
- Heusinkveld Ultimate/Ultimate+, Sprint and Pro
- JCL Hydraulic Pedals
- Logitech G25, G27, G29, G920, G923, G Pro pedals
- Meca Cup1-2, Meca Cup1-3, Clutch and Base Plate, Meca Cup 1 Evo Hydraulic & LC
- Moza CRP, SRP Pedal set with and without SRP plate & Moza ActivePedal
- OBP Pro Race V2 Sim Pedal System
- Protosimtech PT2
- Quaife Throttle Pedal and Brake
- Racewerk S1 Hydraulic Sim Racing Pedals
- Ricmotech RealGear GTPRO3 Pedals
- SRP GT/GT-R/Formula/Formula-R
- Simagic P2000, P1000 (All variants) & P500 Pedals
- Simucube Active pedals
- Simworx Pro Series
- Simgrade pedal plate and VX PEDAL
- Sim Coaches P1-3
- Simtrecs ProPedal GT (2023)
- SimJack Pro Pedals, SimJack Ultimate UT Pedals
- Simforge Mark-2 Pedals, Simforge Mark-1
- Sim-Lab XP1 Pedals (2024)
- Simtag PT-1 Modular Pedals
- Trak Racer Loadcell Pro Pedals
- Thera Pedals
- Turtle Beach Velocity One Race pedals
- Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
- Velazquez Engineering PRO+ Hydraulic
- Venym ATRAX Black Pedals (2024)
- VRS DirectForce Pro Pedals
- VNM V1 Pedals
- Wave Impetus
- XP1 Loadcell Pedal Set
- 3DRAP Ngasa
SHIFTER MOUNT COMPATIBILTY
- Asetek Forte S-Series Shifter (2022)
- Aiologs SQ Shifter
- BJ Sim Racing Shifter 3.0
- BDH Race Sim Hardware H1SQ & H2SQ
- DSD SQ Shifter
- Fanatec ClubSport Shifter, SQ
- Frex H Pattern
- Heusinkveld SQ Shifter
- Jinx Shifter - additional mount required
- Logitech RS Shifter & G-Shifter
MOZA HGP Shifter, SGP Sequential Shifter & the AB9 FFB Shifter. - MME Motorsport Sequential Shifter
- Meca Cup Shifter
- PRO-SIM, PRO-SIM LITE & PRO-SIM SEQUENTIAL
- Quaife PSL Sequential V2, Sequential, and H Pattern - additional mount required
- Simworx Pro Series - additional mount required
- SIMAGIC DS-8X H-Pattern, Q1S & TB-1 Shifters & SIMAGIC Q1S Sequential Shifter
- Sim-Lab SQ1 Sequential Shifter (2023/24)
- SimJack Sequential Shifter
- Thrustmaster TH8A, RSTSS, TSS+
- Trak Racer Sequential Shifter Pro
- TRSS-PRO
- Venym ATRAX Black Sequential ShifterVNM Simulation Sequential Shifter
OPTIONAL HANDBRAKE MOUNT COMPATIBILITY
- Asetek SimSports – Forte Handbrake (2023)
- Aiologs Handbrake (2022)
- BJ Sim Racing – Handbrake 2.0 (2024)
- Conspit – H3 Dual-mode Hydraulic Handbrake (2024)
- DSD Hydralulic Handbrake
- Fanatec Clubsport Handbrake (V1/V2)
- Ghost Sim Racing – Handbrake (2023–25)
- Heusinkveld Handbrake
- Moza Racing – HBP Handbrake (2023)
- Meca Handbrake
- Prosim Handbrake Digital/RX Analog
- Quaife Handbrake
- RealGear RALLYpro Handbrake
- Sim-Lab – XB-1 Handbrake (2023)
- Simworx Pro Series Handbrake
- SimJack – Handbrake (2024)
- Simagic TB-1 Handbrake, Simagic – TB-RS Hydraulic Handbrake
- Thrustmaster TSS+
- Trak Racer Loadcell Pro Handbrake
- Venym – ATRAX Black Handbrake
- VNM Simulation – VNM Handbrake V1.5
Contact us if your product is not listed
Also, Flight/Heavy Equipment
- Thrustmaster TPR: Thrustmaster Pendular Rudder
- Thrustmaster T.Flight Rudder Pedals
- Logitech Flight Rudder Pedals
- Logitech Heavy Equipment
- Virpil Ace
- Flight Sim Rudder Pedals – RUDDO+ (2 holes only on pedal pre-drilled plate)
Also, Flight/Heavy Equipment
- Flight Sim Yoke – Yoko Neo
- Logitech Flight Yoke System (by clamp)
- Logitech Flight Switch/Multi/Instrument Panels
- Logitech Heavy Equipment
- Turtle Beach Velocity One Flight
- Brunner Yoke CLS-E MK-II
Compare rigs
RACING SIMULATOR COMPARISON CHART
Rotate screen on mobile
| FEATURES |
FS3 V2 |
TR40S |
RS6 |
TR80S |
TR8 PRO |
TR160 |
TR120S |
TR160S |
ALPINE TRX |
|---|---|---|---|---|---|---|---|---|---|
| ALPINE F1 TEAM APPROVED | No | No | No | No | Yes | No | No | No | Yes |
| FRAME TYPE | High grade steel | Base: 40 × 40mm aluminium extruded profile Uprights: 80 × 40mm aluminium extruded profile | 2" tubular profile | 80×40mm aluminium extruded profile | 2" tubular profile | 160×40mm aluminium extruded profile | 120×40mm aluminium extruded profile | 160×40mm aluminium extruded profile | 2" tubular profile |
| RECOMMENDED WHEELBASE TORQUE | 0 to 5Nm | 0 to 10Nm | 0 to 8Nm | 0 to 16Nm | 0 to 25Nm | 0 to 30Nm+ | 0 to 30Nm+ | 0 to 30Nm+ | 0 to 30Nm+ |
| ASSEMBLED DIMENSIONS (WIDTH x LENGTH) | 584mm×895mm | 660mm×1200mm | 540mm×1185mm | 660mm×1200mm | 600mm×1300mm | 660mm×1445mm | 660mm×1445mm | 660mm×1445mm | 620mm×1507mm |
| WEIGHT | 18kg (40lbs) | 24.8kg (54.7lbs) | 38kg (83lbs) | 32kg (70.5lbs) | 51kg (112lbs) | 41kg (90.4lbs) | 37kg (81.6lbs) | 42.1kg (92.1lbs) | 89kg (196lbs) |
| WHEELBASE MOUNT OPTIONS | Wheel plate | Wheel plate | Wheel plate | Wheel plate | Wheel plate | 1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
| PEDAL MOUNT OPTIONS | Steel plate | Steel plates (split) | Steel plate | Steel plates (split) | Steel plate | Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate |
| PEDAL TRAY ADJUSTABILITY | Low | Low | Low to medium | High | Low to medium | Medium to high | Medium to high | Medium to high | High |
| FORMULA/GT HYBRID PEDAL SYSTEM | No | No | No | Yes | No | Optional | Optional | Optional | Yes |
| GEAR SHIFT MOUNT | Included | Optional | Included | Optional | Included | Included | Optional | Optional | Optional |
| SEAT SLIDER RAILS | Not applicable | Optional | Included | Optional | Included | Included | Included | Included | Included |
| INTEGRATED MONITOR STAND COMPATIBILITY | Not applicable | Optional Single up to 80" Triple up to 32" Excluding quad |
Not applicable | Optional Single up to 80" Triple up to 32" Excluding quad |
Optional Single up to 70" |
Optional Single up to 80" Triple up to 45" Including quad |
Optional Single up to 80" Triple up to 45" Including quad |
Optional Single up to 80" Triple up to 45" Including quad |
Optional Single up to 70" |
| MOTION-READY | No | Yes Motion base required |
Yes Motion base required |
Yes Motion base required |
Yes Motion base required |
Yes Direct-fit No base required |
Yes Direct-fit No base required |
Yes Direct-fit No base required |
Yes Motion base required |
| APPROXIMATE ASSEMBLY TIME | 1 hour | 7+ hours | 1 hour | 7+ hours | 1 hour | 7+ hours | 7+ hours | 7+ hours | 2 hours |
| ADJUSTMENT TIME BETWEEN FORMULA AND GT DRIVING POSITIONS | Not applicable | Not applicable | Not applicable | 30 minutes | Not applicable | 30 minutes Requires TR Hybrid Pedal System |
30 minutes Requires TR Hybrid Pedal System |
30 minutes Requires TR Hybrid Pedal System |
3–5 minutes |
| OVERALL COMMENT | A great entry-level wheel stand to give you a taste for sim racing, flight sim, or for those who have limited space. | Exceptionally priced entry-level rig that will handle most belt-driven and direct drive wheel bases (up to 8Nm) | A simple-to-assemble entry level cockpit, with easy access and enough strength to handle most wheel bases and pedals without flex. | A great cockpit that offers huge adjustment in the pedal mount. | Fast and easy assembly. Rigid enough to handle direct drive wheel bases up to 25Nm without flex. The quick-slide wheel mount and option for integrated monitor stand make the TR8 pro a stand-out rig. | The most rigid rig on the market with double-walled aluminum extrusion and heavier duty brackets and mounts. | Unique in it's design and setting a new standard for extrusion-style cockpits. The TR120S is a full-sized rig with endless adjustment. Includes the TR-One wheel mounting system. | The next size up from the TR120S, the TR160S is unique in its design. Includes the TR-One wheel mounting system. | Co-developed with Alpine F1 Team Engineers, the Alpine Racing TRX is a huge advancement in cockpits for its quick adjustments and rigidity |
